RigiTech Software Update - June 26, 2023

RigiCloud and Edge Node - v1.8.0:​

Added​

Airbridge Planner:

  • Safety Profiles

    • Rather than defining Safety Settings (ie. contingency behaviours on geocage breach, failures, etc.) on a route-by-route basis, all Safety Settings are now defined through Safety Profiles, which can then be assigned to and reused across many routes
    • Changes to a Safety Profile are propogated to all the Routes that use that Safety Profile
    • Multiple Safety Profiles can be defined to represent different scenarios (urban flight, controlled airspace, etc.), allowing flexibility to perform flights using different ConOps

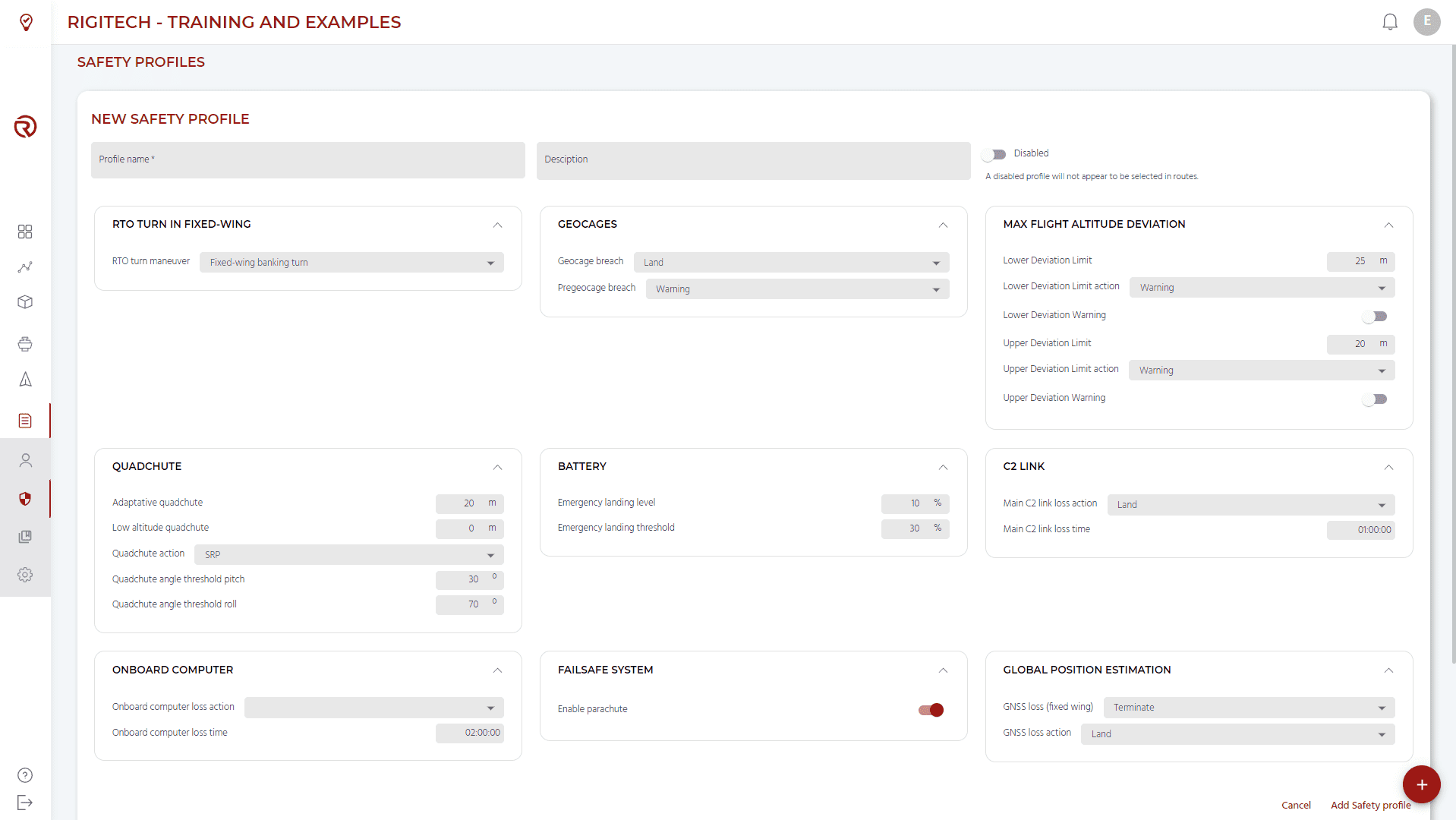

    Safety Profiles (Settings)

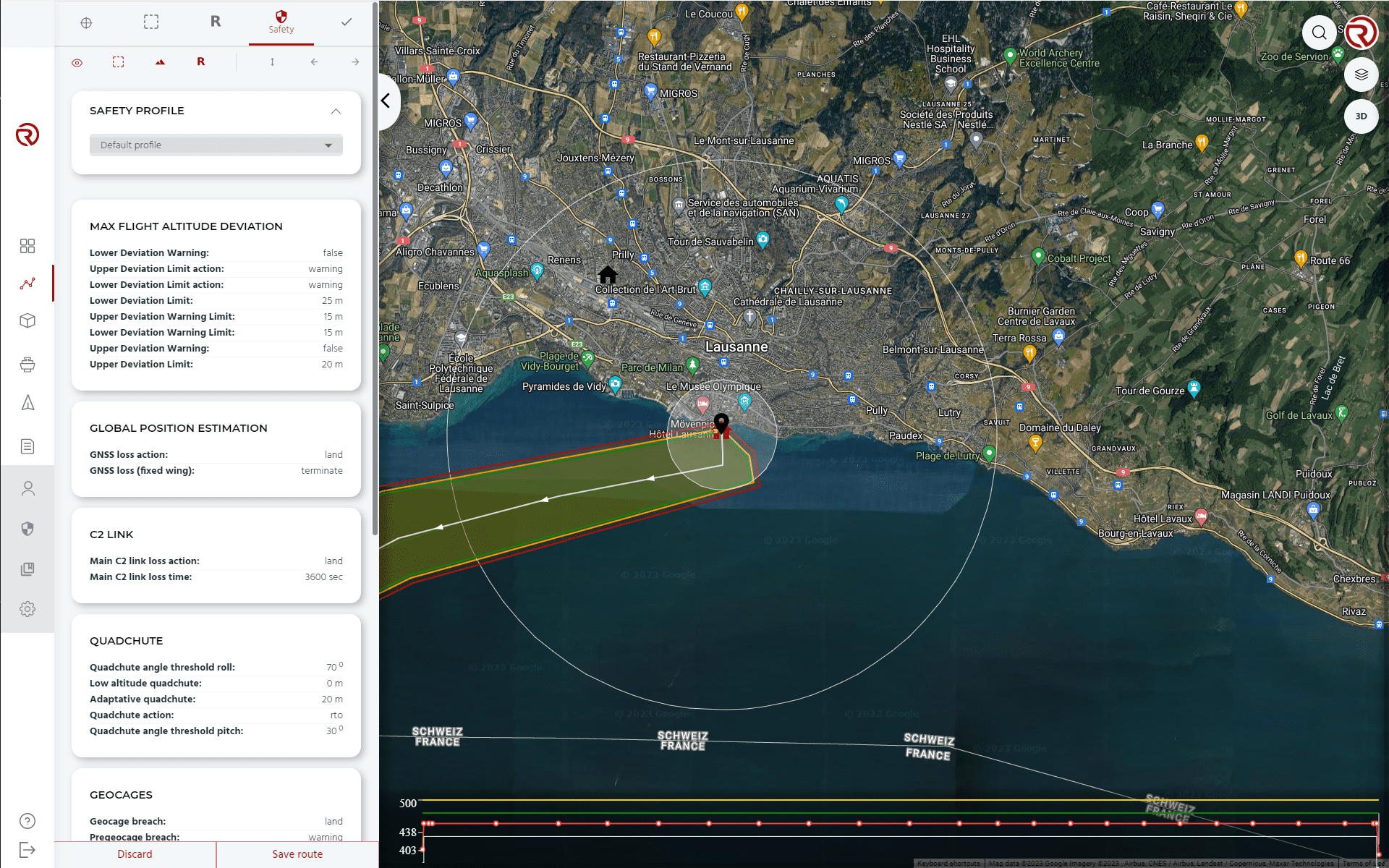

    Safety Profiles (Airbridge planner)

Control Tower:

  • Live video streaming from Forward and Downward-facing cameras
    • A live video feed can now be started from either the downward or forward-facing cameras by the Operator and shown directly in the browser window
    • Video streams are managed through RigiCloud, allowing unlimited users to watch the stream at once without increasing the data stream between the drone and RigiCloud
    • Video streams can be displayed in windowed or full-screen mode
    • Permission levels allow control of the video stream (on/off or switch cameras) to higher-level Users while only allowing streaming with no control for Users with lower permissions

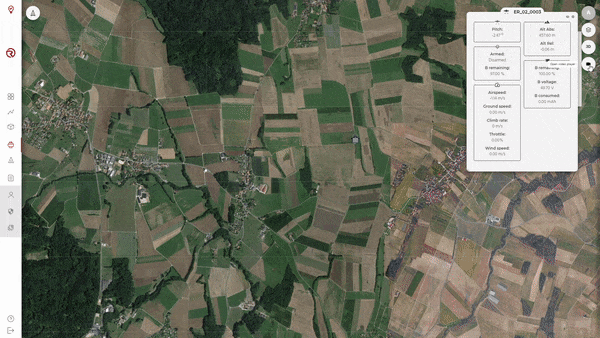

Live video streaming

  • Additional map tilesets
    • Exising "Dark" tileset refined with updated colours and data, and a new "Light" tileset added for readability in some lighting conditions

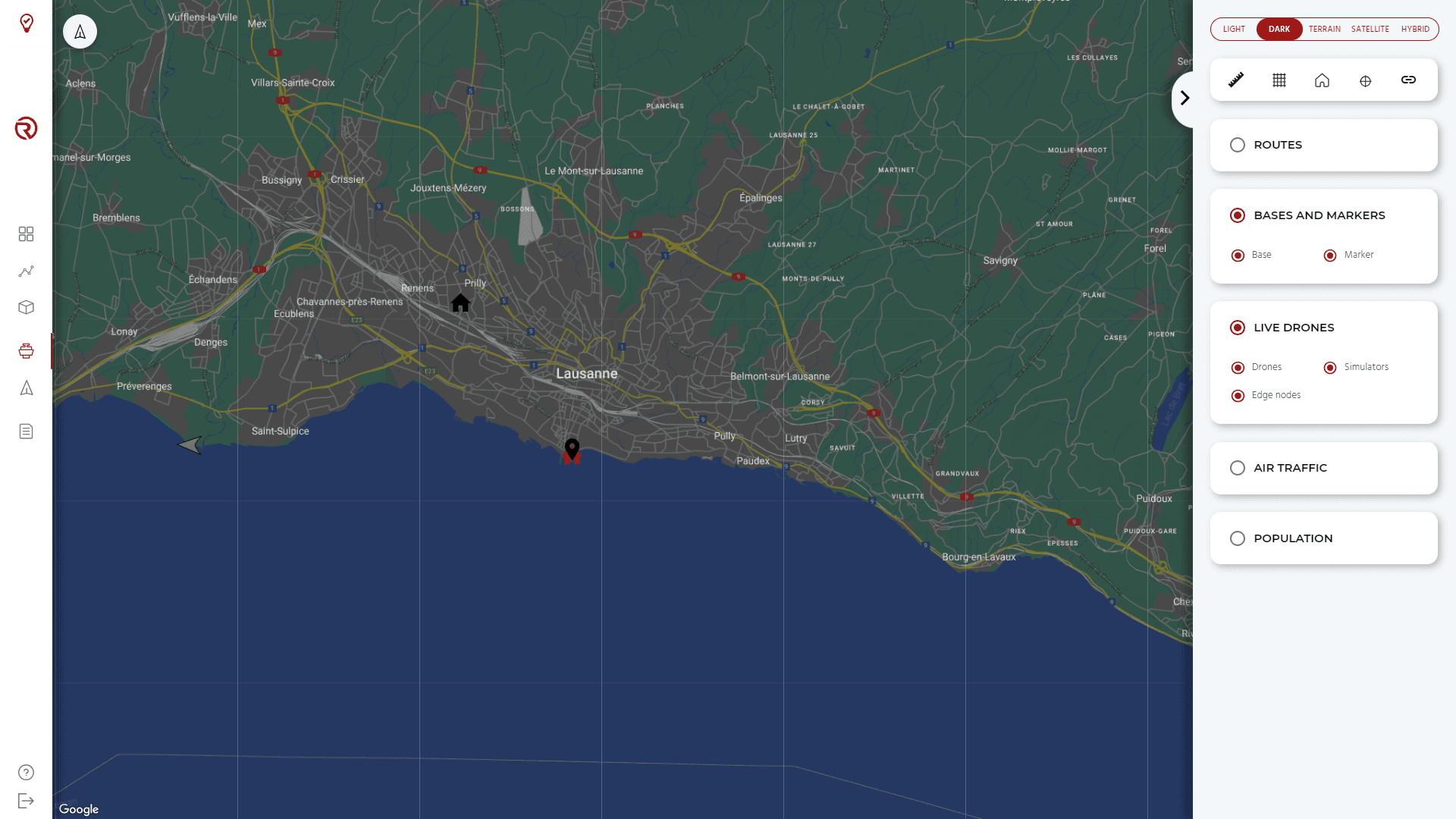

Dark tileset

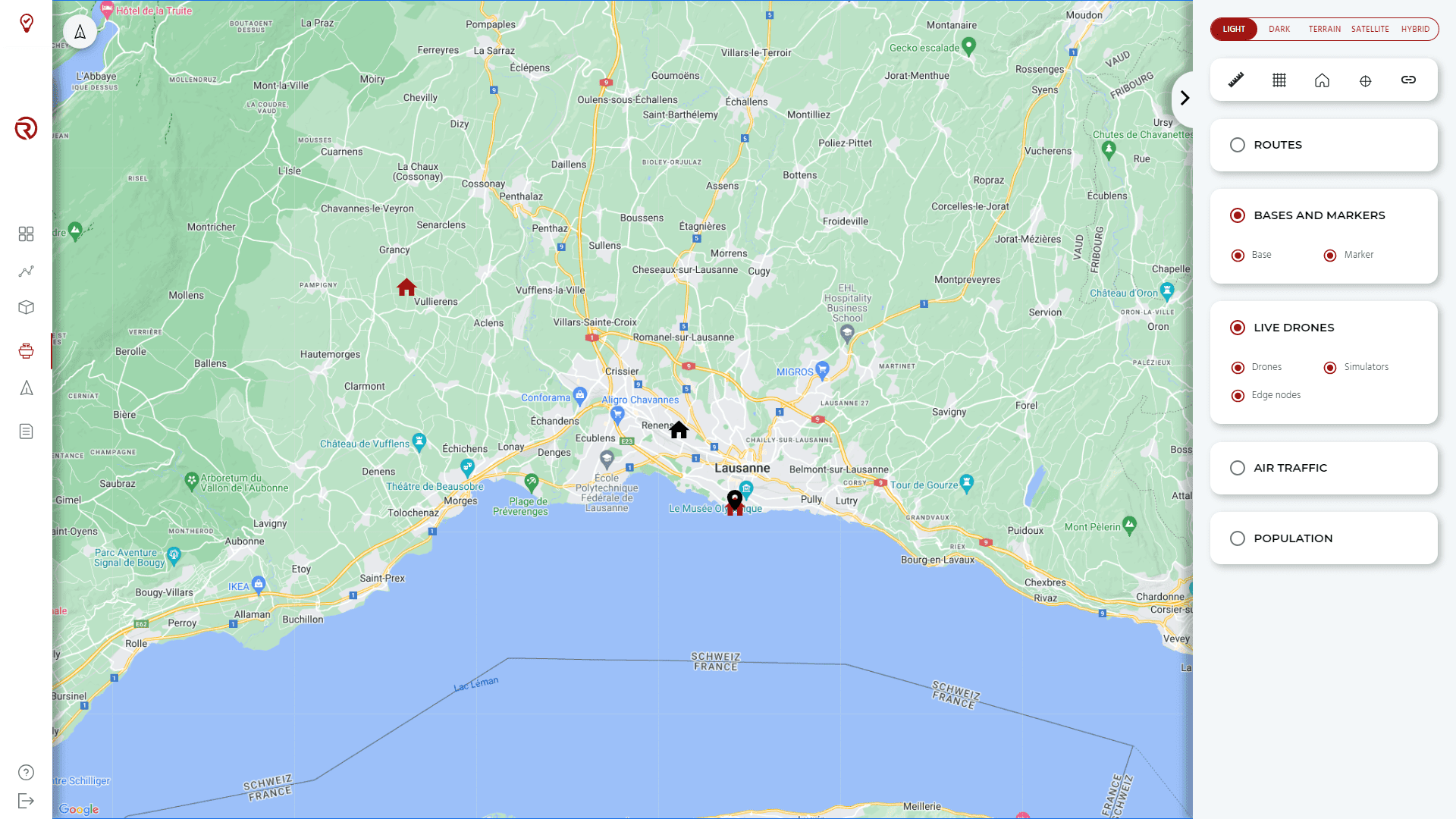

Light tileset

Logistics Center:

  • Flight logs for simulated operations are now also synchronised to the server, to allow tracking of flight hours done by operators in simulation before performing real flights.

Fixed/Improved​

  • Simulator now runs at 1x speed by default (instead of 5x)
  • Removed deprecated Airspace and Weather layers in Map Tools that were out of date or no longer supported by data suppliers
  • Increased reliability of live telemetry feed through separation from other parts of the RigiCloud software infrastructure
  • Improved Elevation data API, resulting in faster planning for complex routes
  • Warning now displayed for geocages that have more than 255 vertices
  • Bugfixes, reliability improvements, software refactors.

Onboard software (OC) - v0.15.0:​

Added​

  • Support for new mobile radio modems and other hardware modules in Eiger drones

Fixed/Improved​

  • Improved RTO (Return to Takeoff) behaviour in missions that contain Loops
  • Improved Precision Landing accuracy and target detection range in difficult lighting conditions

Autopilot (AP) software - v1.13.2:​

Added​

  • Support for various airspace detection radios, including streaming of detected aircraft positions to RigiCloud

Fixed/Improved​

  • Improved battery level detection accuracy

Failsafe Computer (FS) firmware - v0.12.0:​

Added​

  • Failsafe Computer now tracks all pre-flight and in-flight activations and synchronises this data with RigiCloud, a required step for the Design Verification of Enhanced Containment in BVLOS flight

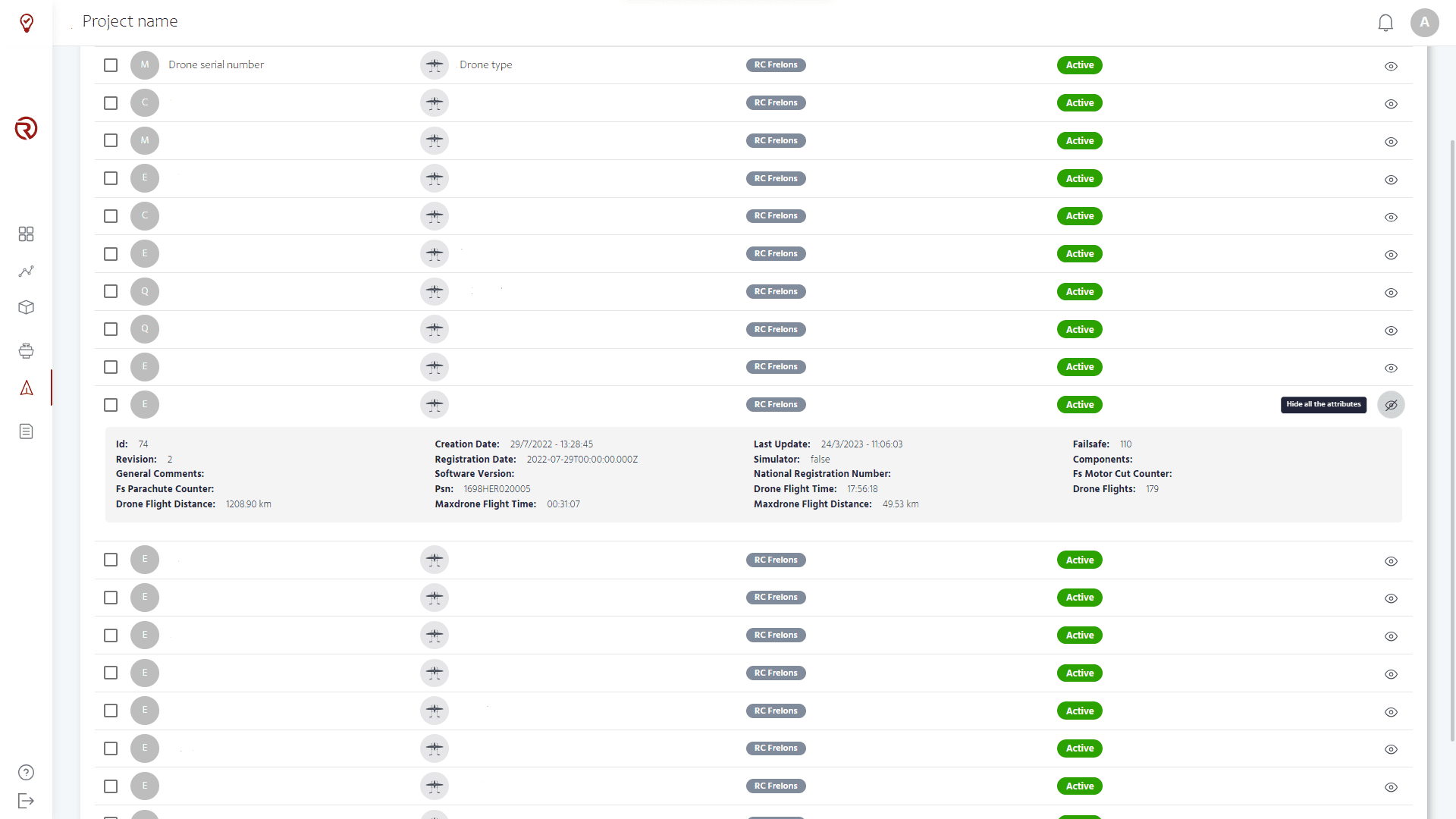

FS Counter

Fixed/Improved​
